AUTOCLAVE VERTICAL DOUBLE WALLED – GUPTA BRAND 20009007

High pressure vertical steam sterilizer is used for sterilizing, surgical instruments dressing materials linen rubber, plastic material by means of saturated stream under pressure of 15 to 20 P.S.I. (adjusted) apart from health services it is also used in scientific research laboratories, educational institutions and universities. The triple wall unit has inner chamber steam jacket and outer wall made of S.S. duly argon arc welded. The space between outer wall and steam jacket is filled with high grade glass wool to minimize the temperature loss, all sterilizers are hydraulically tested up to 40 P.S.I the lid is made of thick S.S./ gunmetal and closed by wing nut type closing arrangements fitted with a gasket made of neoprene rubber, water level arrangements to indicate water level, pressure gauze , steam release cock , spring loaded safety valve which can be set at any selected point from 10 P.S.I , +_ 3 P.S.I and drain cock.. Supplied complete with cord and plug to work on 220 volt. 50 Hz. AC supply. Available in following sizes.

Dia x depth.

Load

a) 250 x 450 mm.

1.5 K.W.

b) 300 x 500 mm.

2.0 K.W.

c) 350 x 550 mm

3.0 K.W.

d) 400 x 600 mm

4.0 K.W.

OPTIONAL ACCESSORIES:

a) Automatic Pressure cut-off switch

b) Low water level cut-off device

c) Automatic German timer

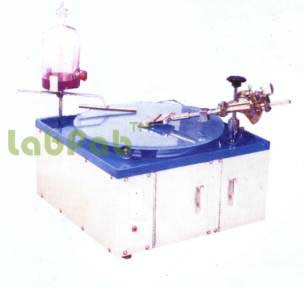

AUTOMATIC KNIFE SHARPENER (A.T. TYPE) – GUPTA BRAND 30009622

With Miller assembly at its heart, the unit is unmatched even by the most skilled hard honing and stropping. It permits to set extract angle of bevel of knife edge. A perfect cutting edge is obtained by sharpening the knife on this unit. Salient features of the unit include easy operation, automatic reversing of knife at regular intervals for an equal bevel angle on both sides of its edge eliminates the need for resurfacing the glass plate as the knife execution is across the full diameter of the rotating plate. The unit comprises of the reinforced sheet metal housing with hinged doors at front and side to facilitate easy cleaning and maintenance. It has a constant speed motor to rotate the ground glass plate 500mm dia x 12mm thick at constant speed. Knife up to the size of 300mm x 13mm can be easily sharpened on the unit. A lubricant reservoir needed for grinding and polishing a supported on top frame. The unit complete in all respects and duly painted. Supplied with cord and plug without micro abrasive suitable to work on 220V, single phase 50 Hz.AC. supply.

AUTOMATIC KNIFE SHARPENER (SPENCER TYPE) – GUPTA BRAND 30009623
