Objective : Study of Voltage Gain and Frequency Response of a Common Source Amplifier.
Features : Instrument comprises of DC Regulated Power Supply, Circuit diagram is printed, components mounted on the front panel.
Category: Amplifiers characteristics
STUDY OF CLASS A, B, AB AND PUSH PULL AMPLIFIER – GUPTA BRAND 200293
Objective : Study of output gain and Frequency Response of class ‘A’, ‘B’, ‘AB’ and Push Pull Amplifiers.
Features : Instrument comprises of DC Regulated Power Supply, Circuit for all the amplifier circuits printed separately & components are mounted on the front panel
STUDY OF DARLINGTON PAIR AMPLIFIER – GUPTA BRAND 200292
Features : Instrument comprises of fixed Output DC Regulated power supply of 12V, Circuit diagram is printed on front panel.
STUDY OF TRANSISTOR AMPLIFIERS CIRCUITS (CE, CB & CC MODES) – GUPTA BRAND 200289
Objective : To study Frequency Response, Input Impedance, Output Impedance & negative Feed Back of Common Emitter, Common Base & Common Collector Transistor Amplifiers.
Features : Instrument comprises of fixed output. DC Regulated Power Supply ±12V, Circuit diagram is printed and Components mounted on the front panel & connections of important points brought out at Sockets

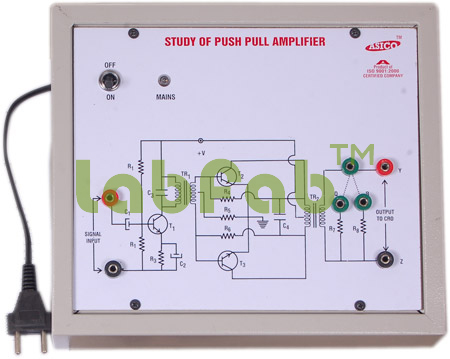

TRANSISTOR PUSH PULL AMPLIFIER – GUPTA BRAND 200291
Objective : Study of Output Gain, Frequency Response of a Class ‘B’ Push Pull Amplifier.
Features : Instrument comprises of DC Regulated Power Supply, Circuit diagram is printed, components mounted on the front panel

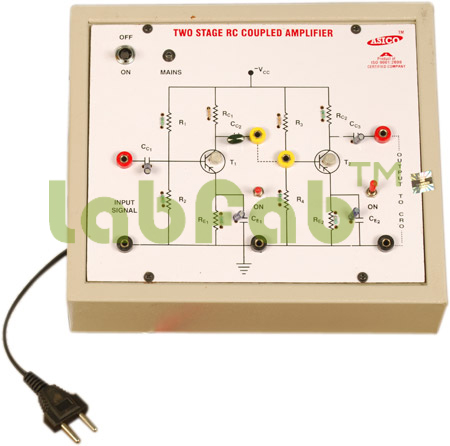

TWO STAGE RC COUPLED TRANSISTOR AMPLIFIER (FREQUENCY RESPONSE) – GUPTA BRAND 200288
Objective : To study Frequency Response of Single stage & two stage RC coupled Common Emitter Transistor Amplifier.
Features : Instrument comprises of DC Regulated Power Supply, Circuit diagram is printed, components mounted on the front panel.
