Category: Analog lab training modules

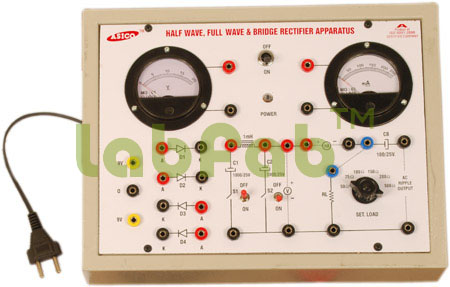

Objective : To study Efficiency & Ripple factor in case of Half wave, Full wave & Bridge rectifier on application of load & filters.
Features : Instrument comprises of AC Power Supply, 2 meters to measure Output Voltage & Output current, 4 PN Junction Diodes, Filter Circuit Kit, load Resistances selectable using band switch.

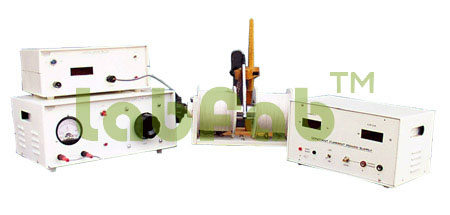

Features : The set up consists of electromagnet of 7.5 Kg, Power supply for electromagnet 0-100V/4 Amp with meter. Germanium crystal mounted & its constant current power supply 0-20 mA fitted with two digital meters for Hall’s voltage & crystal current. Gauss meter digital 0-20 K. Guass with Hall probe.

Objective : To study transfer & output characteristics of IGBT.
Features :Instrument comprises of Two DC Regulated Power Supplies, three round meters for voltage & current measurement, one IGBT is mounted behind the panel, connections of Supplies, Meters & IGBT brought out at 4mm Sockets

Objective : To calculate AC Power factor of LCR circuit when connected in series & subjected to AC voltage.
Features : Instrument comprises of variable AC Power Supply 0-15 VAC, 2 AC moving coil meters to measure voltage & current, 2 Resistance, 2 Capacitors & 1 Inductance connected inside & connections brought out at terminals

Objective : To plot a graph, current Vs intensity of Light at different value of voltages.
Features : Instrument comprises of DC Regulated Power Supply 0-3 VDC/150mA, two round meters for voltage & current measurement, LDR mounted in a metal Box, connections of Supplies & LDR brought out at 4mm Sockets. Lamp Holder with100 W Bulb & 50 cm wooden plank are given with this apparatus
