Features : Instrument comprises of One Fixed outuput DC Regulated Power Supply of 12V at 250mA current, Two moving coil meters, Circuit Printed on the front panel.
Category: Network Theorems
VERIFICATION OF MILLIMAN THEOREM – GUPTA BRAND 200707
Features : Instrument comprises of three fixed Output DC Regulated power supply of 12V, 15V, 18V. Two moving coil meters, circuit diagram printed on the front panel
VERIFICATION OF NETWORK THEOREM – GUPTA BRAND 200701
Objective :To verify Superposition, Norton\’s, Thevinin\’s & Maximum Power Transfer Theorems.
Features :Instrument comprises of 2 fixed output DC Regulated Power Supplies of 12 V & 5V at 250 mA current, 4 moving coil meters, Circuit diagram for all the 4 theorems Printed on the front panel .
VERIFICATION OF NORTAN & THEVININS THEOREMS V – GUPTA BRAND200709
No Description

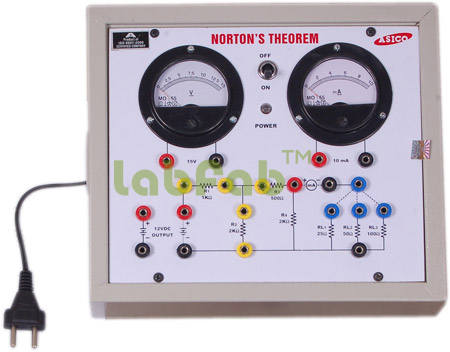

VERIFICATION OF NORTAN S THEOREM – GUPTA BRAND 200703
Features :Instrument comprises of Two Fixed output DC Regulated Power Supplies of 12V & 5V at 250 mA current. Three moving coil meters, circuit diagram Printed on the front panel
VERIFICATION OF RECIPROCITY THEOREM – GUPTA BRAND 200708
Features : Instrument comprises of one Fixed Output DC Regulated Power Supply of12 V at 250mA current, two moving coil meters, Circuit Printed on the Front panel
VERIFICATION OF MAXIMUM POWER TRANSFER THEOREM – GUPTA BRAND 200706
