Category: Microscopes

RESEARCH BINOCULAR MICROSCOPE – GUPTA BRAND 40004020

Specifications
Fungus Treated

    • Binocular or Trinocular tube, 45° inclined, 360° Rota table, IPD 55-75 mm, with
      Dioptric adjustment on left ocular
    • Wide Field eyepiece WF 10x/18mm paired with eye guards.
    • Quintuple Nosepiece with parcentric click stops
    • SP series DIN Semi Plan Achromatic objectives 4x, 10x, 40x (Spring loaded) and 100x
      (Spring loaded), Oil immersion.
    • CO AXAIL mechanical stage cross travel 76 x 50mm on ball bearing with co-axial
      control, Spring clip Double Slide Holder
    • Moveable Sub-stage ABBE condenser NA 1.25 with aspheric lens. Iris diaphragm and
      special day light blue filter in swing out filter holder
    • Co-axial coarse fine focusing with tension control and refocus lock
    • Illumination system 6V-20W Halogen

Instruction Manual, Dust cloth, Dust cover.
Standard Configurations
  • Wide Field eyepiece WF 10x/18mm paired with eye guards.
  • SP series DIN Semi Plan Achromatic objectives 4x, 10x, 40x (Spring loaded) and 100x
Optional accessories
  • Wooden Box

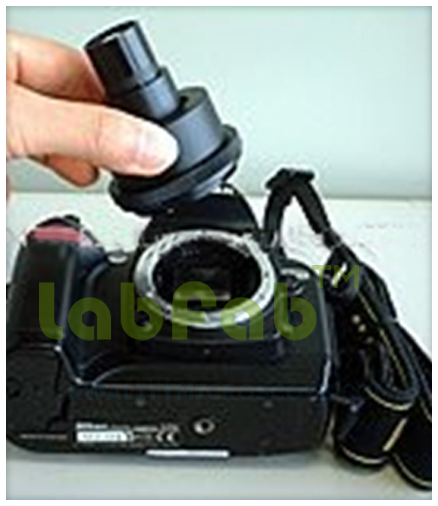

  • DCM 35 Digital Camera for Microscope
  • Eye Piece

RESEARCH MEDICAL MICROSCOPE – GUPTA BRAND 40004006

Specifications
Frame–
All aluminum pressure diecasted body.
Paint –
P.U. coating in light cream shade.
Nose piece–
Quadruple nosepiece.
Focusing system–
Separate course ultra smooth fine motion.
Mechanical stage–
Mechanical stage for smooth functioning.
Condenser –
Condenser Bright field sub stage condenser having 1.2 N.A.
Objectives–
10x, 40x, and 100x and a paired set of 10x wide field eyepieces.
Eye piece–
WF-10X
Standard Configurations
Objectives

      –
      10x, 40x, and 100x and a paired set of 10x wide field eyepieces.

Eye piece

      –
    WF-10X
Optional accessories
  • Wooden Box
  • DCM 35 Digital Camera for Microscope
  • Eye Piece



RESEARCH PATHLOGICAL MICROSCOPE – GUPTA BRAND 40004028

Specifications
Frame

      –
      All aluminum pressure diecasted body.

Paint

      –
      P.U. coating in light cream shade.

Nose piece-

      Reverse type ultra Quadruple ball bearing nosepiece.

Binocular head

      –
      360* rotate able and 30* inclined head with all anti-fungus coated prisms.

Focusing system

      –
      fine Co-axial focusing system with three planetary gears assb. With slide protection lock.

Mechanical stage

      –
      Cxl Ball bearing double layer mechanical stage for smooth functioning.

Condenser

      –
      Condenser Bright field sub stage condenser having 1.2 N.A.

Objectives

      –
      4x, 10x, 40x, and 100x and a paired set of 10x wide field eyepieces.

Eye piece

      –
      WF-10X (20mm)

Illumination

      –
    6v, 20w halogen lamp needs 220v (50Hz),110V(60Hz) optional supply.
Standard Configurations
Objectives

      –
      4x, 10x, 40x, and 100x and a paired set of 10x wide field eyepieces.

Eye piece

      –
    WF-10X (20mm)
Optional accessories
  • Wooden Box
  • DCM 35 Digital Camera for Microscope
  • Eye Piece

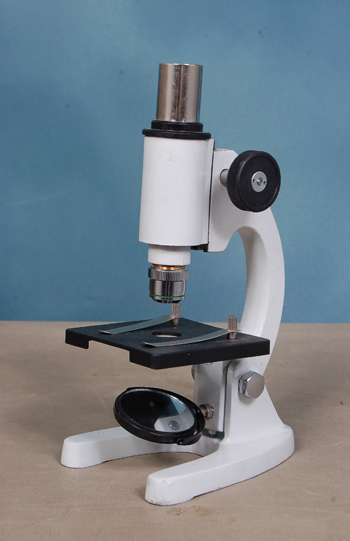

SINGLE NOSE MICROSCOPE – GUPTA BRAND 40004011

Specifications
    • Stable & Robust, traditional Horse shoe base
    • Huygenian eyepiece 10x or 15x (any ONE )
    • Body inclinable through 90°, Tube Length 160mm
    • A1 series Achromatic objectives 10x
    • Fixed Stage with stage clips to hold the slide
    • SMOOTH coarse focusing knobs. Coarse movement by Rack & Pinion
    • Illumination system Plano concave reflector mirror mounted on gimbal mount

Included Items

    Includes: Instruction Manual, Dust cloth, Dust cover.
Standard Configurations
  • A1 series Achromatic objectives 10x
  • Huygenian eyepiece 10x or 15x (any ONE )
Optional accessories
  • Eye Piece
  • Light Source

STEREO MICROSCOPE – GUPTA BRAND 40004029

Specifications
Observation Head:

      Binocular head inclined at 45-deg., rotated through 360-deg with adjustable inter-pupillary distance.

Focussing:

      By Rack and Pinion mechanism with adjustable tension collar.

Magnification:

      Standard magnification 20X & 40X with flat field.

Illumination:

      With integral illuminator, 2 lamps are fitted to provide both transmitted and incident illumination.

Objectives:

      2 sets of objectives 2X and 4X, selected by rotating nosepiece through 90-degrees.

Eyepieces:

    Standard extra wide field eyepieces WF-10X is provided.
Standard Configurations
Objectives:

      2 sets of objectives 2X and 4X, selected by rotating nosepiece through 90-degrees.

Eyepieces:

    Standard extra wide field eyepieces WF-10X is provided.

Optional accessories

  • Objective 1x , 2x
  • Universal Stand
  • Digital Camera
