Category: Microscopes

STUDENT MICROSCOPE – GUPTA BRAND 40004005

Specifications
    • Stable & Robust, traditional Horse shoe base
    • Huygenian eyepiece 10x or 15x
    • Body inclinable through 90°, Tube Length 160mm.
    • Triple nosepiece
    • A1 series Achromatic objectives 10x, 40x (SL)
    • Fixed Stage size 125 x 125mm with stage clips to hold the slide
    • Fixed condenser N.A 0.65, aperture selection through a Diaphragm
    • Seperate coarse and fine focusing knobs. Coarse movement by Rack & Pinion and fine movement by screw lever mechanism
    • Illumination system Plano concave reflector mirror mounted on gimbal mount

Included Items

    Includes: Instruction Manual, Dust cloth, Dust cover.
Standard Configurations
  • A1 series Achromatic objectives 10x, 40x (SL)
  • Huygenian eyepiece 10x or 15x
Optional accessories
  • Eye Piece
  • Wooden Box
  • Light Source
  • Mechanical Stage

STUDENT STEREO MICROSCOPE – GUPTA BRAND 40004030

Specifications
Observation Head:

      Straight Binocular head with interpupillary adjustment & hand grip.
      Objectives.

Stage:

      Stage with clips and reversible black & white plate.

Objectives:

      Fixed Achromatic Objectives 2X or 3X.

Eyepieces:

    Widefield Eyepieces WF 10X or 15X.
Standard Configurations
Objectives:

      Fixed Achromatic Objectives 2X or 3X.

Eyepieces:

    Widefield Eyepieces WF 10X or 15X.

TRINOCULAR MICROSCOPE – GUPTA BRAND 40004014

Frame–

All aluminum pressure diecasted body.

Paint –
P.U. coating in light cream shade.

Nose piece–
ultra Quadruple ball bearing nosepiece.

Binocular head–
360* rotate able and 45* inclined head with all anti-fungus coated prisms.

Focusingsystem–
fine Co-axial focusing system with three planetary gears assb. With slide protection lock.

Mechanical stage–
Cxl Ball bearing double layer mechanical stage for smooth functioning.

Condenser –
Condenser Bright field sub stage condenser having 1.2 N.A.

Objectives–
4x, 10x, 40x, and 100x and a paired set of 10x wide field eyepieces.
Eye piece–
WF-10X (20mm)

Illumination–
6v, 20w halogen lamp needs 220v (50Hz),110V(60Hz) optional supply.

TRINOCULAR MICROSCOPE (ECONOMICAL MODEL) – GUPTA BRAND 40004012

Frame–
All aluminum pressure diecasted body.

Paint –
P.U. coating in light cream shade.

Nose piece–
Quadruple  nosepiece.

Binocular head–
360* rotate able and 45* inclined head with all anti-fungus coated prisms.

Focusingsystem–
Coarse and Fine motion moving on rack and pinion

Mechanical stage–
Cxl  mechanical stage for smooth functioning.

Condenser –
Condenser Bright field sub stage condenser having 1.2 N.A.

Objectives–
4x, 10x, 40x, and 100x and a paired set of 10x wide field eyepieces.
Eye piece–
WF-10X

Illumination–
6v, 20w halogen lamp needs 220v (50Hz),110V(60Hz) optional supply

TRINOCULAR MICROSCOPE RESEARCH MODEL – GUPTA BRAND 40004013

Frame–
All aluminum pressure diecasted body.

Paint –
P.U. coating in light cream shade.

Nose piece–
ultra Quadruple ball bearing nosepiece.

Binocular head–
360* rotate able and 45* inclined head with all anti-fungus coated prisms.

Focusingsystem–
fine Co-axial focusing system with three planetary gears assb. With slide protection lock.

Mechanical stage–
Cxl Ball bearing double layer mechanical stage for smooth functioning.

Condenser –
Condenser Bright field sub stage condenser having 1.2 N.A.

Objectives–
4x, 10x, 40x, and 100x and a paired set of 10x wide field eyepieces.
Eye piece–
WF-10X (20mm)

Illumination–
6v, 20w halogen lamp needs 220v (50Hz),110V(60Hz) optional supply.

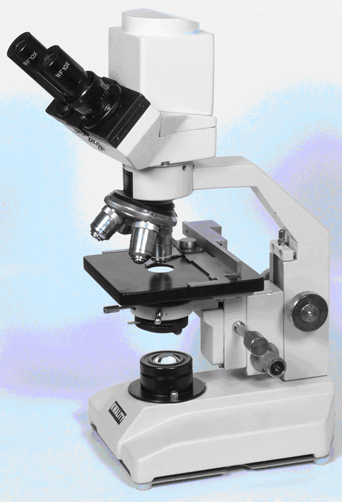

VIDEO MICROSCOPE(BINOCULAR) – GUPTA BRAND 40004017

Binocular inclined at 45’ Rotatable 360’

  • Achromatic objectives 4x,10x,40x, (SL) 100xoil(SL)
  • Fine Adjustment : 0-180 knob For slow Motion & Highly Sensitive Fine Motion
  • W F 10x Eye Piece Pair
  • Co-axial Mechanical Stage
  • Quadruple Revolving Nose Piece with Accurate Centring and Positive Click Stop
  • In built High Resolution ¼” colour CCD Camera
  • Simultaneous Multi-Model Display : Through Eye Piece Through Direct Video Display

Note : Our Microscope With CCD Camera Unit Can Be Directly Attached To T.V. Through A.V. Leads For Direct Observation On T.V. Screen

TECHNICAL DATA OF IMAGINE DEVICE

POWER SOURCE -Dc 12v +_ 10%
IMAGE DEVICE – ¼” COLOR  CCD IMAGE SENSOR  NTSC /PAL Output
RESOLUTION -380 Tv Line/720X576 Pixels (PAL) 720X480 Pixels (NTSC)
LIGHT SENSITIVITY –0.5 Lux (F 2.0” k)
INTERFACE –Composite Video Av Mode 7500 Ohm/Optical USB Ver 2.0
WHITE BALANCE-Auto
ELECTRONICS SHUTTER SPEED -1/55 1-100000 SEC.
CURRENT COMPOSITION-12ma
SYSTEM REQUIREMENTS –200Mhz (Pentium 2) Or Higher 64 Mb RAM or More , 15” Or Above Monitor 100 MB or Above Hard disk Space CD-ROM ,USB Port Printer (for Printer Report)
Optical Accessories :- Tv Tuner Card, Image Analysis Software
